Retro Reflective Position Proximity Sensor Switch With Visible Red Light

Brand Name : IFM

Model Number : OT5013

Certification : CE,UL

Place of Origin : Germany

MOQ : 1 PCS

Price : consult for best discount

Payment Terms : T/T , Western Union,Paypal,, MoneyGram,, L/C

Supply Ability : 10-500 Pcs/month

Delivery Time : 2-15 days

Packaging Details : IFM Original Package

Series : OT Retro-reflective Sensor

Operating voltage : 10 to 50VDC

Output Electrical design : PNP

Overload protection : Yes

Materials : PBT

Display : LED

Contact Now

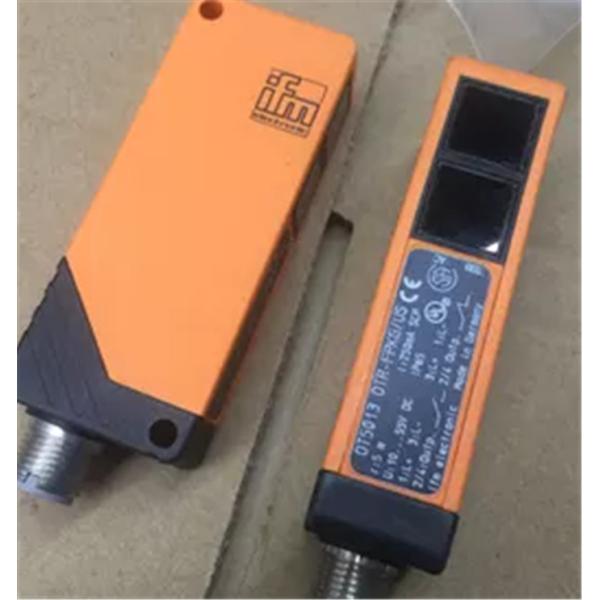

IFM OT5013 Proximity Sensor Switch OT Series Retro-reflective Sensor Position Sensors

IFM OT5013 Proximity Sensor Switch IFM Retro-reflective Sensor Position Sensors:

For retro-reflective sensors the transmitter and receiver are incorporated into one housing. By means of a reflector the transmitted light is returned to the receiver. Retro-reflective sensors without polarisation filter operate with infrared light, systems with polarisation filter with visible red light.

Simple alignment due to visible red light
Versions for the use in hygienic applications
LED display to check operation, switching status and function
Setting process saves time and cost during set-up
Extensive range of system components for easy and secure mounting

Technical data Of IFM OT5013 Proximity Sensor Switch

Application

Function principle

Retro-reflective sensor

Electrical data

Operating voltage [V]

10...50 DC

Current consumption [mA]

40; ((24 V))

Protection class

Reverse polarity protection

yes

Type of light

infrared light

Wave length [nm]

880

Outputs

Electrical design

PNP

Output function

light-on/dark-on mode; (programmable)

Max. voltage drop switching output DC [V]

2.5

Permanent current rating of switching output DC [mA]

250

Switching frequency DC [Hz]

150

Short-circuit protection

yes

Type of short-circuit protection

pulsed

Overload protection

yes

Detection zone

Range referred to prismatic reflector [m]

0.15...5; (Prismatic reflector Ø 80 E20005)

Range adjustable

yes

Max. light spot diameter [mm]

262

Light spot dimensions refer to

at maximum range

Operating conditions

Ambient temperature [°C]

-25...60

Protection

IP 65

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

583

Mechanical data

Weight [g]

162.2

Housing

rectangular

Dimensions [mm]

75 x 19 x 30

Materials

PBT

Lens material

PMMA

Lens alignment

side lens

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Accessories

Accessories (supplied)

Angle bracket: 1 x, E20461

screwdrivers

Remarks

Pack quantity

1 pcs.

Electrical connection

Connection

Connector: 1 x M12

Diagrams and graphs

excess gain graph
